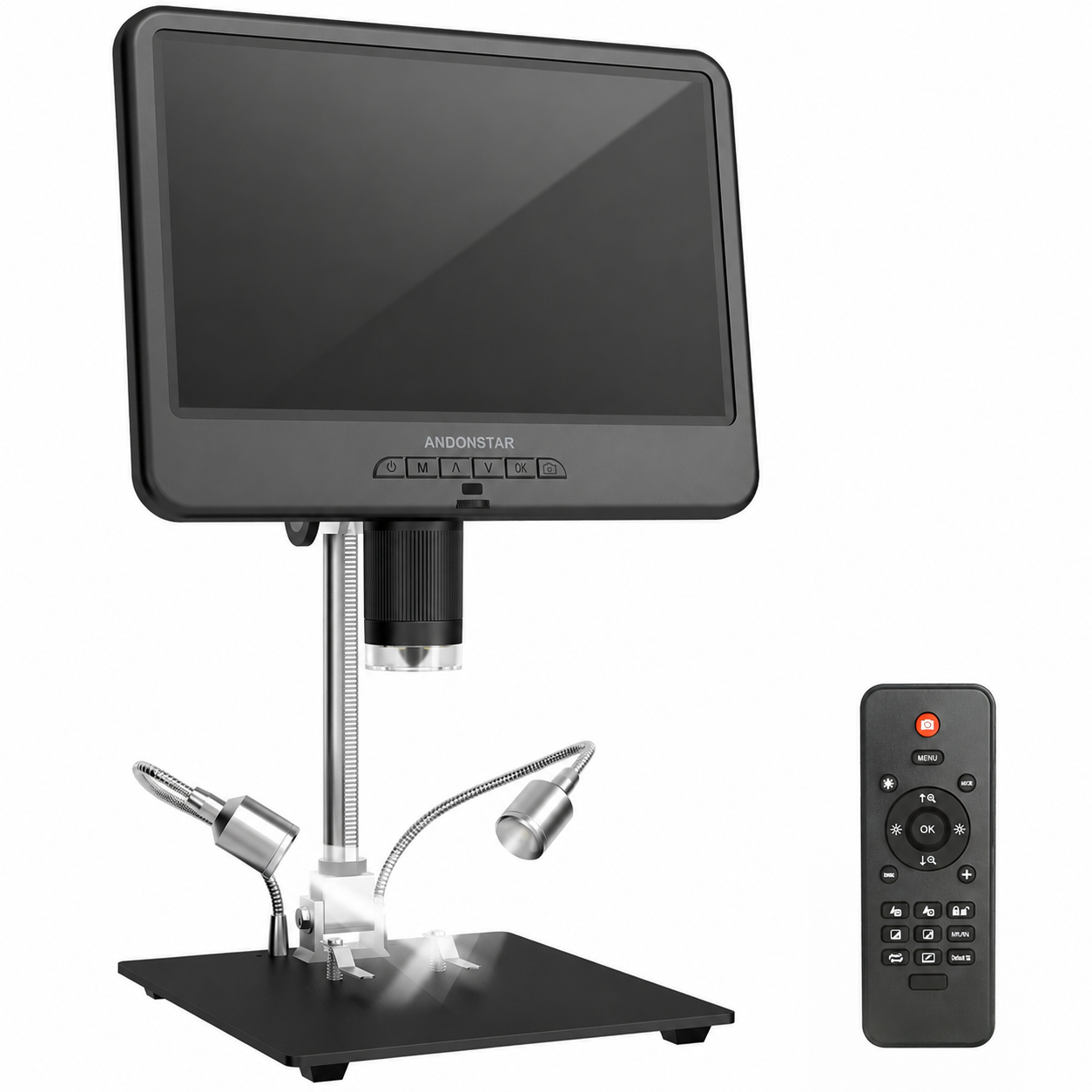

Andonstar AD210 10.1-inch Digital Microscope

A clear, hands-free bench microscope built for electronics work. The Andonstar AD210 gives you a large 10.1-inch display and the working room needed for precise ECU repair, PCB inspection, and component-level soldering.

It is especially useful when soldering or inspecting BDM and JTAG pads, headers, test points, fine-pitch components, damaged traces, and reworked connections.

Built for ECU and PCB Work

• Inspect ECU boards before and after repair
• Solder BDM and JTAG pads, headers, and test points with better visibility
• Check fine-pitch SMD components, solder joints, lifted pads, and trace damage
• Document repairs with onboard photo and video capture

Bench-Friendly Design

• 10.1-inch IPS display for a comfortable, direct view without looking through an eyepiece
• 1080p video and up to 12MP photos for inspection and repair documentation
• Adjustable metal stand and large base for stable, hands-free work with useful clearance above the board
• Eight-LED lens ring plus two adjustable gooseneck lights to reduce shadows around small components
• Remote control for capture and menu operation without disturbing the microscope
• Supports microSD storage for photos and video

Specifications

• Display: 10.1-inch IPS
• Video recording: up to 1920 × 1080 at 30 fps
• Still images: up to 12MP
• Lighting: eight-LED lens ring and two adjustable LED task lights
• Power: 5V / 2A
• Standalone display: PC connection is not supported

In the Box

• Andonstar AD210 microscope and display assembly
• Metal stand and base with dual gooseneck lights
• Remote control
• Two metal work clips
• Power cable, lens cap, and documentation

This is a bench inspection and soldering microscope; it is not calibrated metrology equipment.
